Inflatable Containment Boom

Harbour Flow Boom - Inflatable Boom

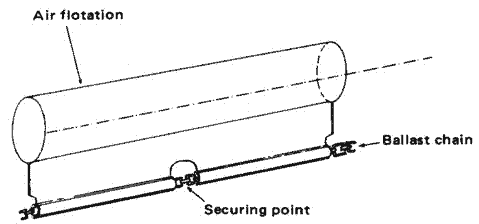

The Edge Harbour Flow Boom is a substantial air solid buoyancy boom ideal for off-shore of harbour use. Made form PVC or PU material giving durable and very high wear abrasion resistance. Each boom section incorporates “Veecon” universal connectors to allow quick connection of other sections of towing bridle. Splash flaps are fitted to prevent “splash over” of oil and reinforced handholds can be provided by a enclosed, long link galvanized chain with optional anchor points at each end.

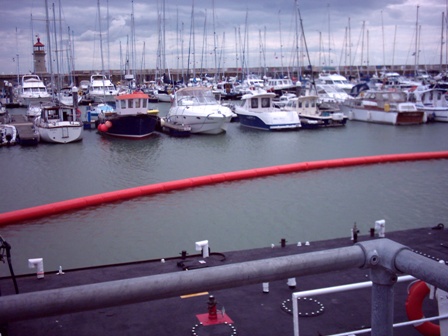

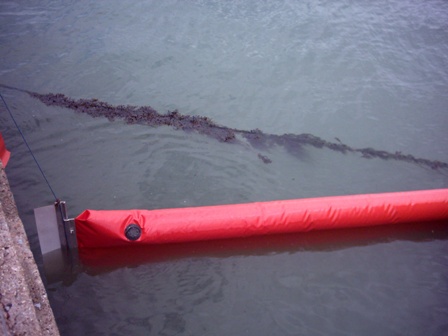

Below are pictures of a 30mtr x 60cm inflatable boom we manufatured for our own use. The boom was successfully deployed during a pollution control training exercise at Ramsgate Harbour in 2009.






Additional Equipment

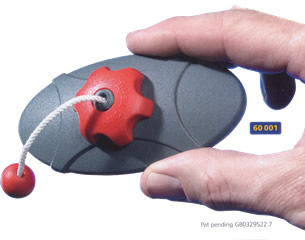

Clam Seal Inflatable Containment Boom Repair Kit - ClamSeal™

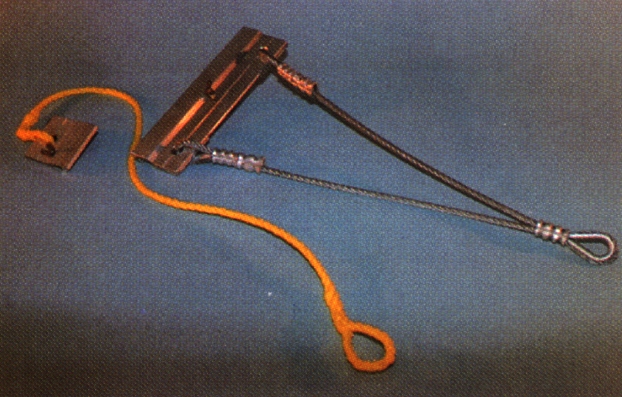

Towing Bridle Towing Bridles*

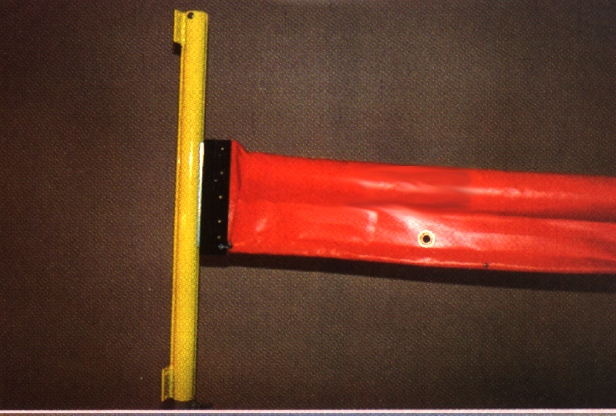

Tidal Slide Tidal Slides*
Magnetic Connector  Magnetic Connectors*

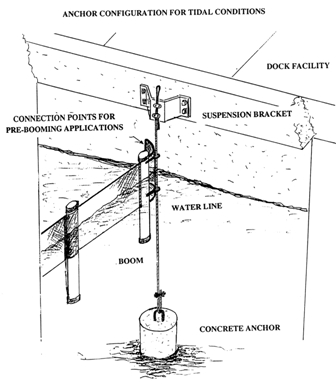

Tidal Slide System  Weighted Tidal Slide Systems*
*These are examples of accesories we've manufatured in the past, furture designs may vary.
